Brand Name: JMC
Material: Low Carbon Steel
Size: #4-5/0
Finish: Zinc, Self-color and other color
Packing: In Carton or Gunny Bag, then on Steel Pallet
Place of Origin: Shandong, Chain(Mainland)
Business Type: Manufacturer, Trading Company

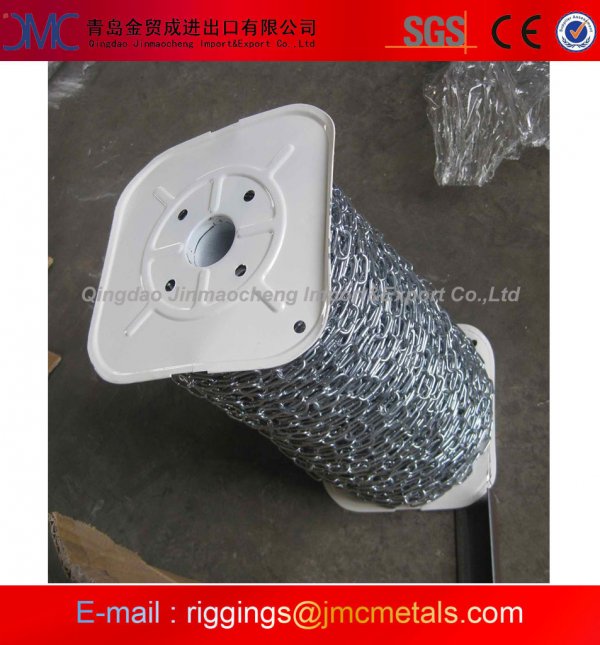

| Coil Chain Straight Link(Long Link) | |||||||
| Size | A(Dia) | B(outside length) | C(inside length) | WLL(lbs.) | |||
| mm | inch | mm | inch | mm | inch | ||
| #4 | 3.0 | 0.118 | 28.1 | 1.106 | 5.3 | 0.209 | 205 |
| #3 | 3.4 | 0.134 | 29.7 | 1.169 | 6.1 | 0.240 | 255 |
| #2 | 3.8 | 0.150 | 29.9 | 0.177 | 6.6 | 0.260 | 310 |
| #1 | 4.1 | 0.161 | 31.7 | 1.248 | 7.1 | 0.280 | 370 |
| 1/0 | 4.5 | 0.177 | 31.7 | 1.248 | 7.9 | 0.311 | 440 |
| 2/0 | 4.9 | 0.193 | 32.0 | 1.260 | 8.6 | 0.339 | 520 |
| 4/0 | 5.5 | 0.218 | 46.4 | 1.826 | 9.7 | 0.380 | 670 |
| 5/0 | 6.3 | 0.250 | 51.3 | 2.020 | 11.2 | 0.440 | 880 |
