Brand Name: JMC
Material: Carbon Steel
Size: M20*400-M36*500
Surface Treatment: Self Color,E. Galv
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

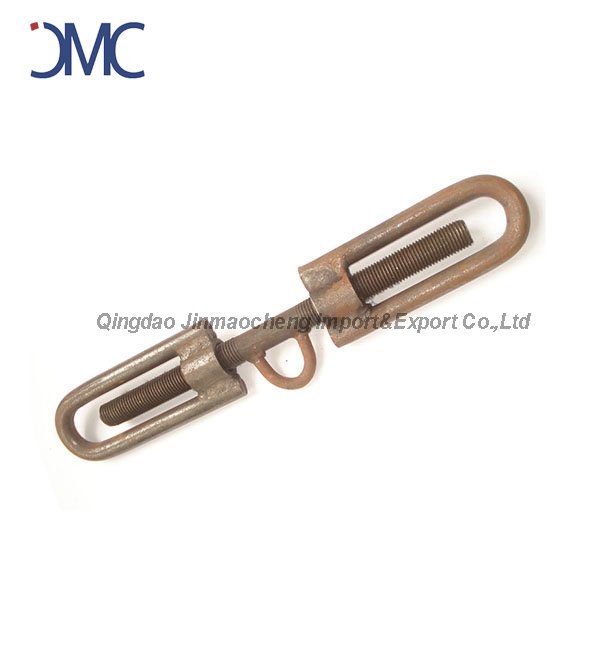

| DD Type Turnbuckle | |||||||||

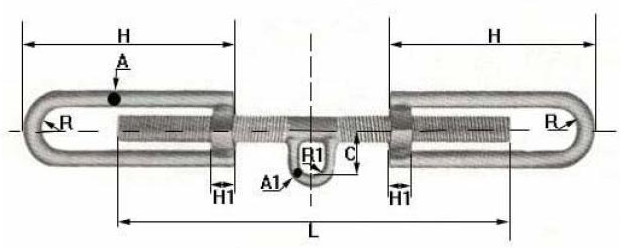

| SIZE | M.B.S. | A | A1 | H | H1 | R | R1 | C | L |
| (MM) | (TON) | (MM) | (MM) | (MM) | (MM) | (MM) | (MM) | (MM) | (MM) |
| M20X400 | 10 | 14 | 10.5 | 210 | 23 | 17 | 13 | 32 | 400 |
| M20X450 | 10 | 14 | 10.5 | 232 | 23 | 17 | 13 | 32 | 450 |
| M20X500 | 10 | 14 | 10.5 | 260 | 23 | 17 | 13 | 32 | 500 |
| M24X400 | 13 | 16 | 11.8 | 210 | 28 | 20.5 | 18 | 36 | 400 |
| M24X500 | 18 | 18 | 11.8 | 260 | 28 | 20.5 | 18 | 36 | 500 |
| M27X400 | 20 | 18 | 11.8 | 210 | 34 | 21.5 | 18 | 36 | 400 |
| M27X500 | 25 | 20 | 11.8 | 260 | 34 | 21.5 | 18 | 36 | 500 |
| M30X400 | 25 | 20 | 11.8 | 210 | 36 | 23 | 18 | 36 | 400 |
| M30X500 | 30 | 22 | 11.8 | 260 | 36 | 23 | 18 | 36 | 500 |
| M36X400 | 30 | 25 | 11.8 | 210 | 40 | 24.5 | 18 | 36 | 400 |
| M36X500 | 35 | 28 | 11.8 | 260 | 40 | 24.5 | 18 | 36 | 500 |
