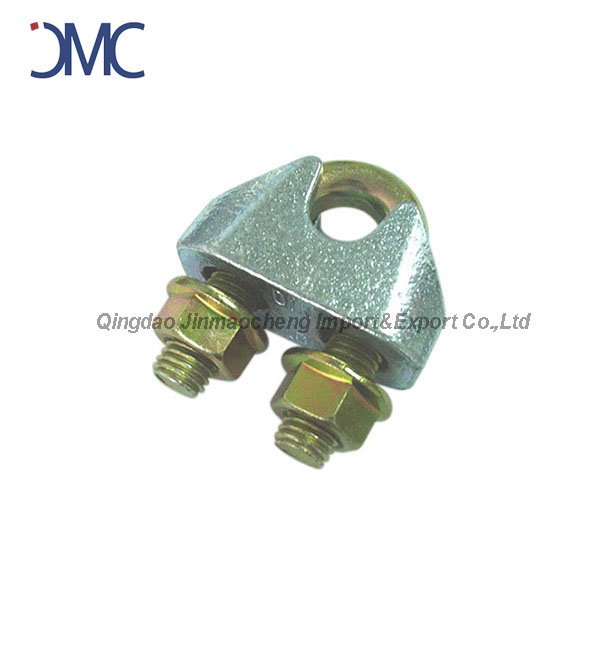

Brand Name: JMC
Model Number: DIN Standard
Material: Malleable Iron
Size: 5mm-40mm
Surface Treatment: E. Galv, H.D. Galv
Technology: Casting
Application: Wire Rope Fittings
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

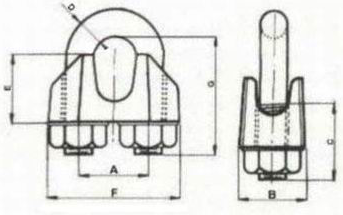

| DIN1142 Wire Rope Clip | |||||||
| SIZE | DIMENSIONS (MM) | ||||||
| (MM) | A | B | C | D | E | F | G |
| 5 | 12 | 13 | 13 | 5 | 13 | 25 | 20 |
| 5.5 | 14 | 16 | 17 | 6 | 14 | 30 | 26 |
| 8 | 18 | 20 | 20 | 8 | 18 | 39 | 33 |
| 10 | 20 | 20 | 24 | 8 | 21 | 40 | 38 |
| 13 | 17 | 28 | 30 | 12 | 29 | 55 | 52 |
| 16 | 32 | 32 | 35 | 14 | 35 | 64 | 64 |
| 19 | 36 | 32 | 35 | 14 | 40 | 68 | 69 |
| 22 | 40 | 34 | 40 | 16 | 44 | 74 | 80 |
| 26 | 46 | 38 | 50 | 20 | 51 | 84 | 91 |
| 30 | 54 | 41 | 55 | 20 | 59 | 95 | 107 |
| 34 | 60 | 45 | 60 | 22 | 67 | 105 | 119 |
| 40 | 68 | 49 | 65 | 24 | 77 | 117 | 135 |
