Brand Name: JMC
Model Number: European Type
Material: Carbon Steel
Size: M5-M42
Surface Treatment: E. Galv, H.D. Galv.
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

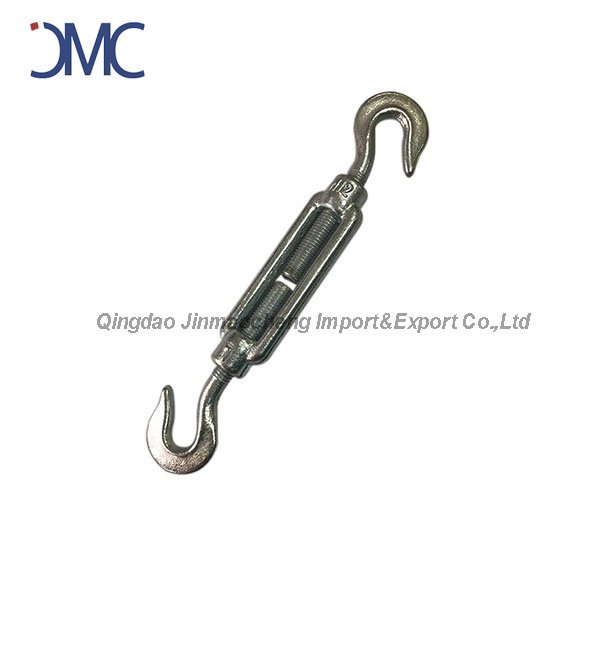

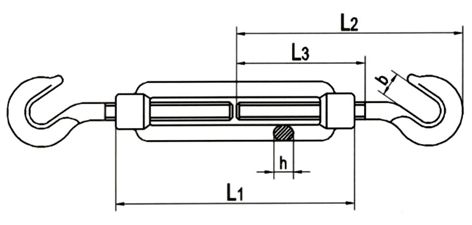

| DIN1480 Turnbuckle With Hook and Hook | |||||
| Size | L1 | H | L2 | L3 | B |
| M5 | 70 | 5 | 62 | 35 | 7.0 |
| M6 | 110 | 6 | 87 | 55 | 8.5 |
| M8 | 110 | 8 | 95 | 55 | 11.0 |
| M10 | 125 | 9 | 118 | 63 | 13.5 |
| M12 | 125 | 11 | 125 | 68 | 15.5 |
| M14 | 140 | 13.5 | 140 | 70 | 18.5 |
| M16 | 170 | 14 | 164 | 85 | 20.0 |
| M20 | 200 | 17 | 196 | 100 | 21.5 |
| M22 | 220 | 19 | 214 | 110 | 26.0 |
| M24 | 255 | 21 | 236 | 128 | 26.0 |
| M27 | 255 | 22 | 250 | 128 | 29.0 |
| M30 | 255 | 23 | 264 | 128 | 29.0 |
| M33 | 255 | 25 | 292 | 128 | 36.0 |
| M36 | 295 | 28 | 319 | 148 | 44.0 |
| M42 | 330 | 32 | 390 | 170 | 48.0 |
