Brand Name: JMC
Material: Carbon Steel
Size: 2mm-32mm
Surface: E.Galv, H.D.Galv
Technology: Welded
Packing: In gunny bag, plastic reel or iron drum, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Comapny

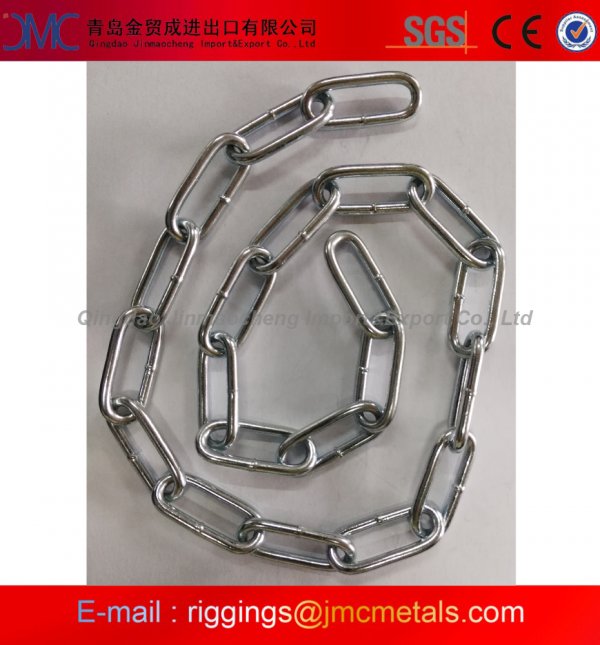

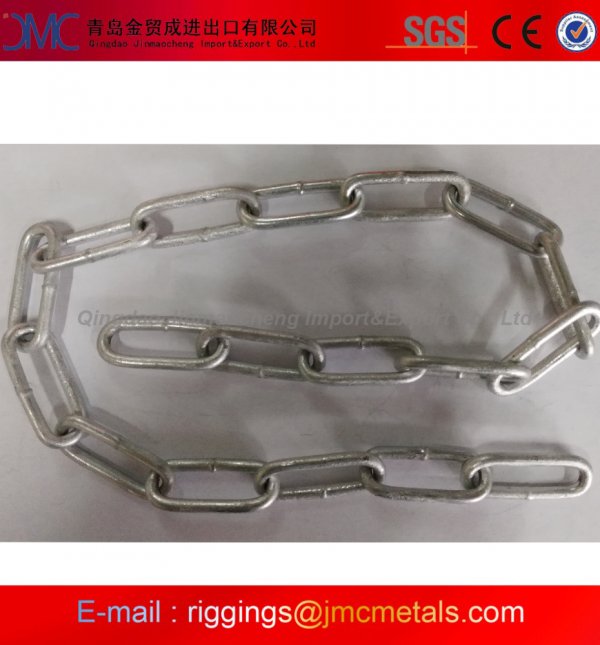

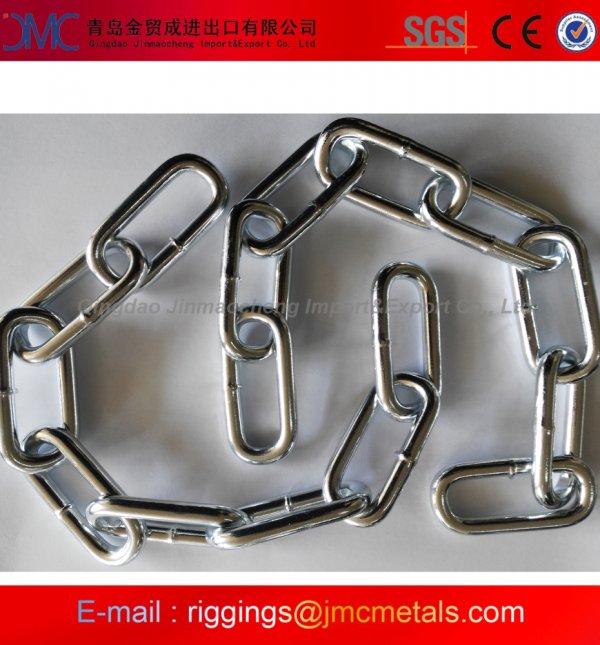

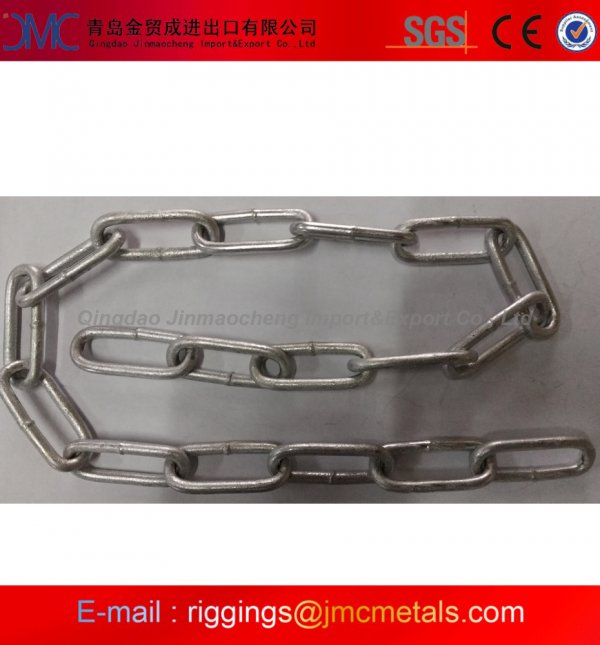

| DIN763 Link Chain | |||||||||
| Size | Inside Length | Outside Width | Working Load Limit | Proof Test | Breaking Load | Weight per M | |||
| MM | ±MM | MM | ±MM | MM | ±MM | KG | N | N | KG |
| 2.0 | 0.5 | 22 | 1.00 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 |
| 2.5 | 24 | 1.10 | 10 | 0.5 | 40 | 800 | 2000 | 0.10 | |
| 3.0 | 26 | 1.20 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 | |
| 3.5 | 28 | 1.30 | 14 | 0.7 | 80 | 1540 | 3850 | 0.20 | |
| 4.0 | 32 | 1.50 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27 | |
| 4.5 | 34 | 1.70 | 18 | 0.9 | 128 | 2500 | 6300 | 0.35 | |
| 5.0 | 35 | 1.80 | 20 | 1.0 | 160 | 3150 | 10000 | 0.43 | |
| 5.5 | 38.5 | 1.80 | 22 | 1.1 | 195 | 3800 | 12000 | 0.52 | |
| 6.0 | 42 | 2.00 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63 | |
| 7.0 | 49 | 2.50 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86 | |
| 8.0 | 52 | 2.50 | 32 | 1.6 | 400 | 8000 | 25000 | 1.10 | |
| 8.5 | 56 | 2.80 | 34 | 1.7 | 460 | 9000 | 28000 | 1.25 | |
| 9.0 | 59 | 3.00 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
| 10.0 | 65 | 3.20 | 40 | 2.0 | 630 | 12500 | 40000 | 1.75 | |
| 11.0 | 1 | 72 | 3.40 | 44 | 2.0 | 790 | 15800 | 47500 | 2.11 |
| 12.0 | 78 | 3.60 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 | |
| 13.0 | 82 | 4.00 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95 | |
| 16.0 | 100 | 5.00 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45 | |
| 18.0 | 113 | 5.20 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
| 19.0 | 119 | 5.60 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
| 20.0 | 120 | 6.00 | 75 | 3.8 | 2500 | 50000 | 160000 | 7.00 | |
| 22.0 | 127 | 6.00 | 82 | 4.0 | 3170 | 63300 | 190000 | 8.55 | |
| 25.0 | 140 | 6.60 | 85 | 4.2 | 4090 | 81700 | 245000 | 10.90 | |
| 28.0 | 152 | 7.00 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.90 | |
| 32.0 | 171 | 8.00 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.20 | |
