Brand Name: JMC
Model Number: European Type
Material: Carbon Steel
Size: 5mm-50mm
Surface Treatment: E. Galv, H.D. Galv, Color Painted
Technology: Forged
Application: Security
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

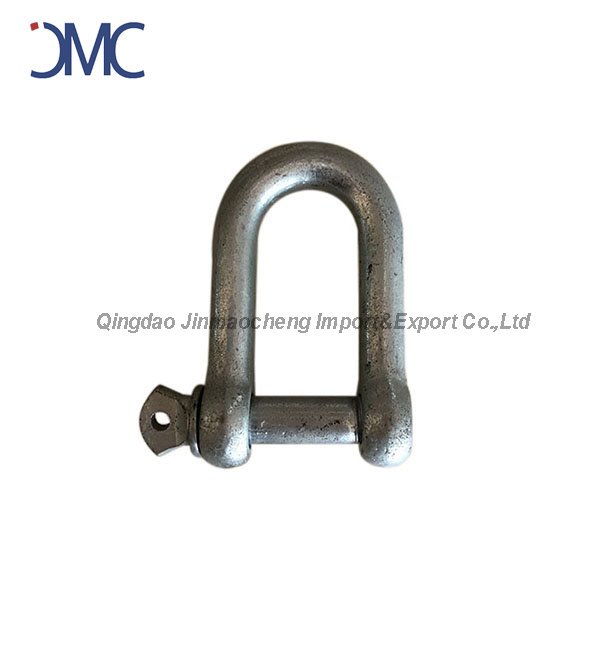

| European Type Large Dee Shackle | |||||

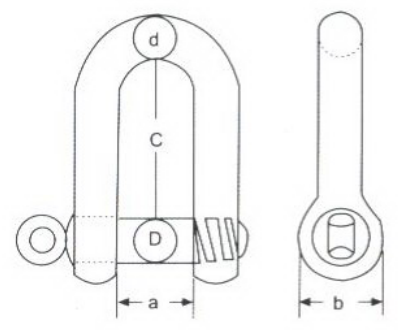

| SWL | D | d | a | c | b |
| KG | MM | MM | MM | MM | MM |
| 80 | 5 | 5 | 10 | 19 | 11 |
| 100 | 6 | 6 | 13 | 25 | 14 |
| 200 | 8 | 8 | 16 | 32 | 18 |
| 320 | 10 | 10 | 19 | 38 | 20 |
| 520 | 12 | 12 | 25 | 51 | 26 |
| 800 | 16 | 16 | 32 | 64 | 33 |
| 1100 | 20 | 20 | 38 | 76 | 40 |
| 1500 | 22 | 22 | 44 | 89 | 50 |
| 2100 | 25 | 25 | 51 | 100 | 57 |
| 3000 | 28 | 28 | 57 | 115 | 68 |
| 3500 | 32 | 32 | 64 | 127 | 73 |
| 5000 | 38 | 38 | 76 | 152 | 85 |
| 7000 | 45 | 45 | 90 | 180 | 96 |
| 8000 | 50 | 50 | 102 | 200 | 108 |
