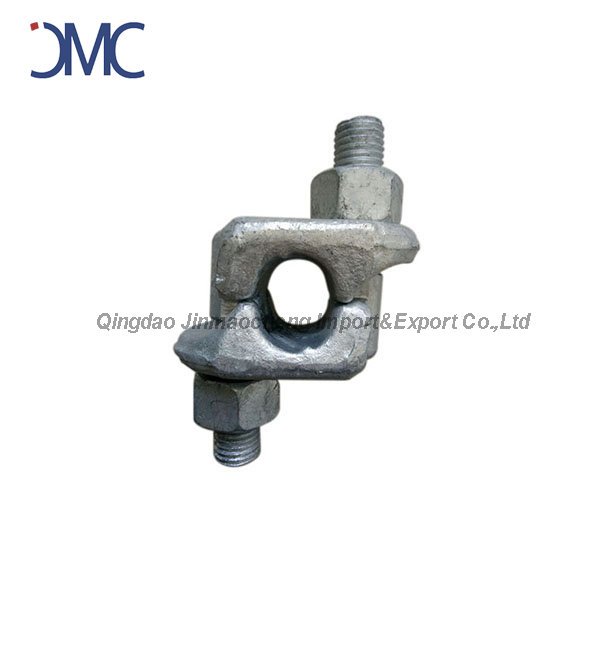

Brand Name: JMC
Model Number: US Type. Fist Grip wire clips meet or exceed the performance requirements of Federal Specification FF-C-450 Type III, CLASS 1, except for those provisions required of the contractor.
Material: Malleable Iron
Size: 3/16"-1.1/2"
Surface Treatment: E. Galv, H.D. Galv
Technology: Casting
Application: Wire Rope Fittings
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

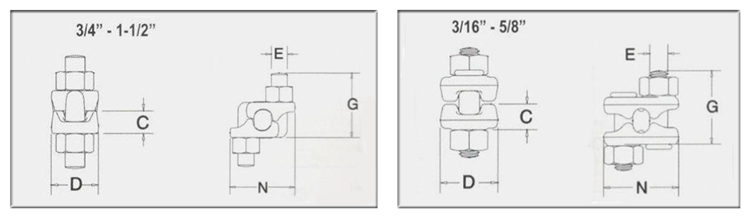

| Fist Grip Clip G-429 | ||||||
| ROPE SIZE | DIMENSIONS (IN.) | |||||
| (IN) | (MM) | C | D | E | G | N |
| 3/16-1/4 | 5-7 | 0.40 | 0.94 | 0.38 | 1.41 | 1.44 |
| 5/16 | 8 | 0.47 | 1.06 | 0.38 | 1.50 | 1.54 |
| 3/8 | 10 | 0.51 | 1.06 | 0.44 | 1.84 | 1.78 |
| 7/16-1/2 | 11-13 | 0.59 | 1.25 | 0.50 | 2.21 | 2.15 |
| 9/16-5/8 | 14-16 | 0.72 | 1.50 | 0.63 | 2.72 | 2.57 |
| 3/4 | 18-20 | 0.86 | 1.81 | 0.75 | 2.94 | 2.67 |
| 7/8 | 22 | 0.97 | 2.12 | 0.75 | 3.31 | 2.86 |
| 1 | 24-26 | 1.13 | 2.25 | 0.75 | 3.72 | 3.06 |
| 1.1/8 | 28-30 | 1.28 | 2.38 | 0.88 | 4.22 | 3.44 |
| 1.1/4 | 32-34 | 1.34 | 2.50 | 0.88 | 4.25 | 3.56 |
| 1.3/8-1.1/2 | 36-40 | 1.56 | 3.00 | 1.00 | 5.56 | 4.12 |
