Brand Name: JMC
Material: Low Carbon Steel
Size: #16-#8
Finish: Nickel, Brass, Chrome
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shadong, China(Mainland)
Business Type: Manufacturer, Trading Company

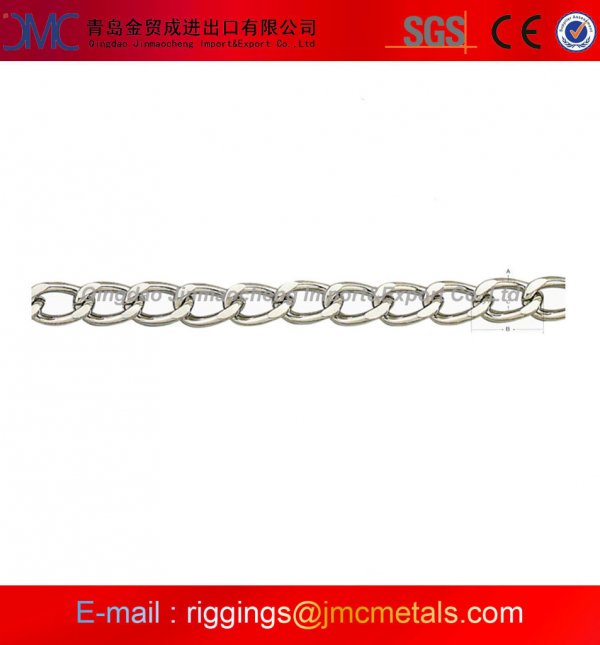

| Flat Twist Link Chain | ||||||||

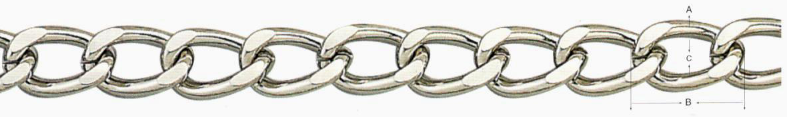

| Size | A(Dia) | B(outside length) | C(inside length) | Weight per 100FT | ||||
| mm | inch | mm | inch | mm | inch | lbs | kgs | |
| #16 | 1.6 | 0.063 | 9.0 | 0.354 | 3.0 | 0.118 | 1.55 | 3.417 |
| #14 | 2.0 | 0.079 | 10.5 | 0.413 | 3.5 | 0.138 | 2.55 | 5.622 |
| #12 | 2.5 | 0.098 | 14.0 | 0.551 | 4.5 | 0.177 | 4.20 | 9.259 |
| #11 | 3.0 | 0.118 | 15.0 | 0.591 | 5.0 | 0.197 | 6.70 | 14.771 |
| #10 | 3.3 | 0.130 | 17.5 | 0.689 | 6.0 | 0.236 | 7.90 | 17.416 |
| #8 | 3.8 | 0.150 | 23.0 | 0.906 | 7.0 | 0.276 | 9.10 | 20.062 |
