Brand Name: JMC
Material: Alloy Steel
Size: 3/8"-1.3/8"
Surface Treatment: Painted Color
Technology: Forged, Quenched and Temperated
Application: For lifting industry
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

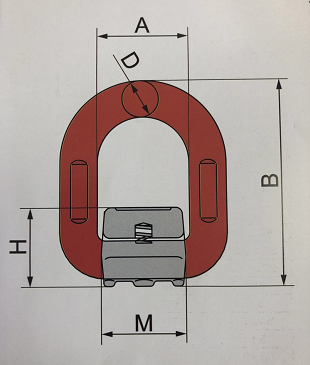

| G80 Weld On Pivoting D Link | ||||||||
| Size | Weight | W.L.L. | B.L. | DIMENSIONS(MM) | ||||
| KGS | T | T | A±1 | B±2 | D±1 | M±1.2 | H±0.3 | |
| 1.12T | 0.40 | 1.12 | 4.48 | 41 | 78.5 | 13 | 37 | 35 |
| 2T | 0.47 | 2.00 | 8.00 | 42 | 88 | 14 | 40 | 37 |
| 3.15T | 0.69 | 3.15 | 12.80 | 45 | 94 | 17 | 42.5 | 40 |
| 5.3T | 1.46 | 5.30 | 21.20 | 55 | 118 | 22 | 61 | 52 |
| 8T | 2.50 | 8.00 | 32.00 | 70 | 141 | 26.5 | 70.5 | 57 |
| 10T | 3.59 | 10.00 | 40.00 | 85 | 165 | 28 | 78 | 63.5 |
| 15T | 5.79 | 15.00 | 60.00 | 97 | 188 | 34 | 90 | 77 |
