Brand Name: JMC
Material: Carbon Steel
Size: 5/8"-3"
Surface Treatment: E. Galv, H.D. Galv.
Technology: Forged
Application: Wire Rope Fitting
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

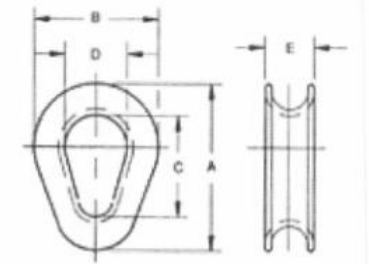

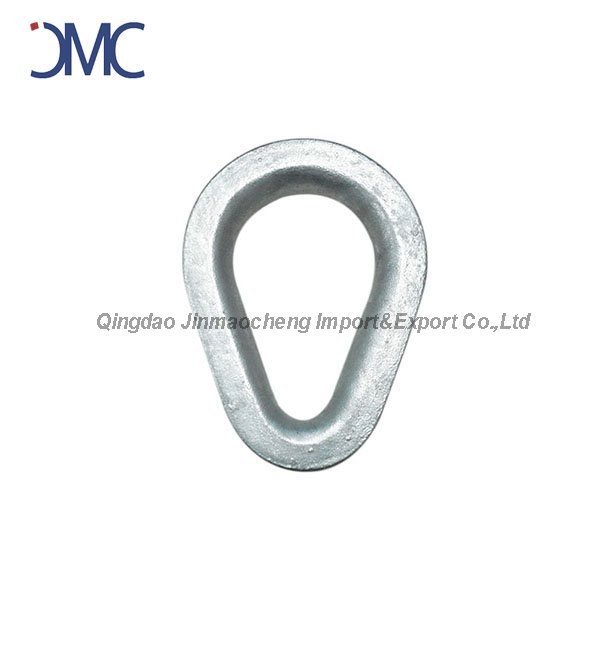

| Hawser Thimble | |||||
| SIZE | DIMENSIONS (IN.) | ||||
| (IN.) | A | B | C | D | E |
| 5/8-3/4 | 6.7/8 | 4.1/2 | 5 | 3 | 1.3/16 |
| 7/8-1 | 8.5/8 | 5.3/4 | 6.1/4 | 3.3/4 | 1.7/16 |
| 1.1/8-1.1/4 | 10 | 6.5/8 | 7.1/8 | 4.3/16 | 1.11/16 |
| 1.3/8-1.1/2 | 12.1/8 | 8 | 8.3/4 | 5 | 2.3/16 |
| 1.5/8-1.3/4 | 12.3/4 | 8 | 9.1/4 | 5 | 2.7/16 |
| 1.7/8-2 | 14.3/4 | 9.1/2 | 10.3/4 | 6 | 2.11/16 |
| 2.1/8-2.1/4 | 17.1/8 | 11 | 12.1/2 | 7 | 3.1/8 |
| 2.3/8-2.1/2 | 19.1/4 | 12.3/4 | 14.1/4 | 8.1/4 | 3.7/8 |
| 2.3/4-3 | 24.1/2 | 17 | 15 | 9.3/8 | 4.15/16 |
