Brand Name: JMC
Material: Steel
Size: 3"-16"
Finish: Painted Color
Packing: Gunny bag or carton, then put on the steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading company
<td width="156" height="14" class="et3" style=%2

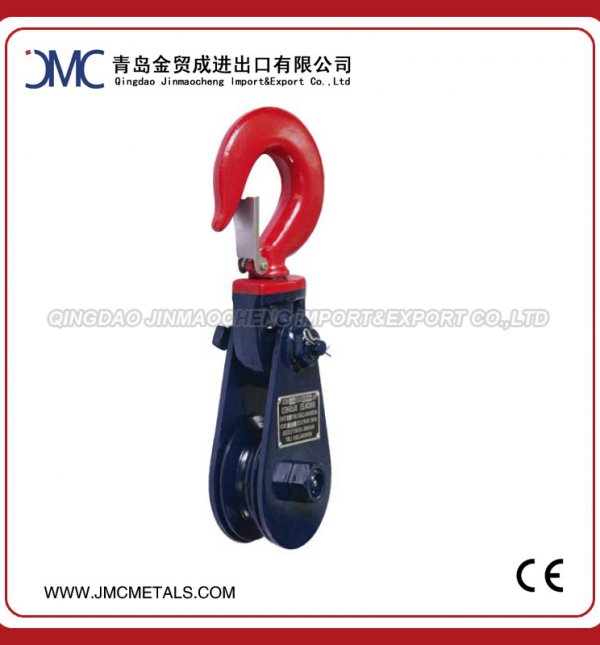

| Light Champion Snatch Block With Hook H418 | |||||
| SHEAVE DIAMETER | WIRE ROPE SIZE | W.L.L. | WEIGHT EACH (LBS.) | ||
| (IN.) | (IN.) | (TON) | 418 WITH HOOK | 419 WITH SHACKLE | 404 TAIL BOARD |
| 3 | 5/16-3/8 | 2 | - | 4 | - |
| 3 | 5/16-3/8 | 2 | 5 | 4 | 3 |
| 4.1/2 | 3/8-1/2 | 4 | 12 | 12 | 7 |
| 6 | 5/8-3/4 | 8 | 27 | 28 | 15 |
| 6 | 5/8-3/4 | 8 | 27 | 28 | 15 |
| 8 | 5/8-3/4 | 8 | 33 | 34 | 21 |
| 8 | 5/8-3/4 | 8 | 33 | 34 | 21 |
| 10 | 5/8-3/4 | 8 | 41 | 42 | 29 |
| 10 | 5/8-3/4 | 8 | 41 | 42 | 29 |
| 12 | 5/8 | 8 | 48 | 49 | 36 |
| 12 | 5/8 | 8 | 48 | 49 | 36 |
| 12 | 3/4 | 8 | 48 | 49 | 36 |
| 12 | 3/4 | 8 | 48 | 49 | 36 |
| 14 | 5/8 | 8 | 55 | 56 | - |
| 14 | 5/8 | 8 | 55 | 56 | - |
| 14 | 3/4 | 8 | 55 | 56 | - |
| 14 | 3/4 | 8 | 55 | 56 | - |
| 16 | 3/4 | 15 | 130 | 135 | - |
| 16 | 3/4 | 15 | 130 | 135 | - |
| 16 | 7/8 | 15 | 130 | ||
