Brand Name: JMC
Model Number: US Type
Material: Alloy Steel
Size: 1/2"-2"
Surface Treatment: Painted Color
Technology: Forged
Application: For lifting industry
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

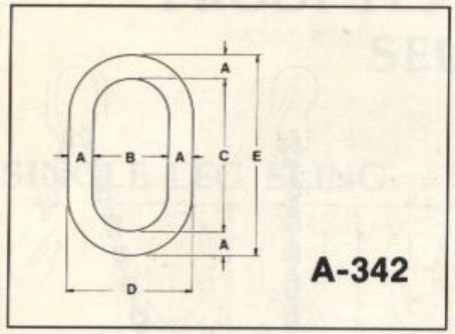

| G80 Alloy Steel Master link | ||||||
| SIZE | W.L.L | DIMENSIONS (IN.) | ||||
| (IN.) | (LBS.) | A | B | C | D | E |
| 1/2 | 4100 | 0.50 | 2.50 | 5.00 | 3.50 | 6.00 |
| 5/8 | 5500 | 0.63 | 3.00 | 6.00 | 4.25 | 7.25 |
| 3/4 | 8600 | 0.75 | 2.75 | 5.50 | 4.25 | 7.00 |
| 1 | 20300 | 1.00 | 3.50 | 7.00 | 5.50 | 9.00 |
| 1.1/4 | 29300 | 1.25 | 4.38 | 8.75 | 6.88 | 11.25 |
| 1.1/2 | 39900 | 1.50 | 5.25 | 10.50 | 8.25 | 13.50 |
| 1.3/4 | 52100 | 1.75 | 6.00 | 12.00 | 9.50 | 15.50 |
| 2 | 81400 | 2.00 | 7.00 | 14.00 | 11.00 | 18.00 |
| ++2.1/4 | 99500 | 2.25 | 8.00 | 16.00 | 12.50 | 20.50 |
| ++2.1/2 | 122750 | 2.50 | 8.00 | 16.00 | 13.00 | 21.00 |
| ++2.3/4 | 148500 | 2.75 | 9.50 | 16.00 | 15.00 | 21.50 |
| ++3 | 190000 | 3.00 | 9.00 | 18.00 | 15.00 | 24.00 |
| ++3.1/4 | 218500 | 3.25 | 10.00 | 20.00 | 16.00 | 26.50 |
| ++3.1/2 | 232500 | 3.50 | 12.00 | 24.00 | 19.00 | 31.00 |
