Brand Name; JMC
Material: Low Carbon Steel
Size;#22-12-L
Finish: Antique Gold, Antique Brass, Antique Silver, Bright Brass, Nickel, and Black and White
Packing: Packed in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type; Manufacturer, Trading Company

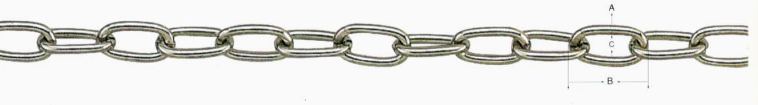

| O Chain | ||||||||
| Size | A(Dia) | B(outside length) | C(inside length) | Weight per 100FT | ||||
| mm | inch | mm | inch | mm | inch | kgs | lbs | |
| #22 | 0.8 | 0.031 | 4.1 | 0.161 | 1.4 | 0.055 | 0.43 | 0.948 |
| #20 | 1.0 | 0.039 | 5.0 | 0.197 | 1.9 | 0.075 | 0.69 | 1.521 |
| #18 | 1.2 | 0.047 | 7.6 | 0.299 | 2.2 | 0.087 | 0.95 | 2.094 |
| #17 | 1.5 | 0.059 | 10.0 | 0.394 | 3.1 | 0.122 | 1.40 | 3.086 |
| #16 | 1.6 | 0.063 | 13.0 | 0.512 | 3.0 | 0.118 | 1.55 | 3.417 |
| #14 | 2.0 | 0.079 | 10.5 | 0.413 | 3.5 | 0.138 | 2.55 | 5.622 |
| #14-L | 2.0 | 0.079 | 16.0 | 0.630 | 4.0 | 0.157 | 2.35 | 5.181 |
| #12 | 2.5 | 0.098 | 12.5 | 0.492 | 5.0 | 0.197 | 5.00 | 11.023 |
| #12-L | 2.5 | 0.098 | 16.0 | 0.630 | 5.5 | 0.217 | 4.40 | 9.700 |
