Brand Name: JMC
Material: Carbon Steel
Size: 1/8"-1"
Surface Treatment: Self Colr, E. Galv, H.D.Galv
Packing: In gunny bag, plastic reel or iron drum, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

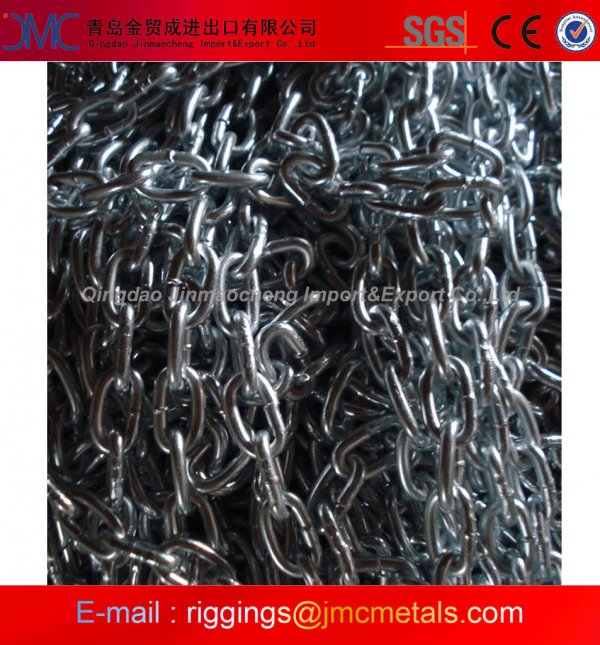

| Ordinary Mild Steel Link Chain | |||||||

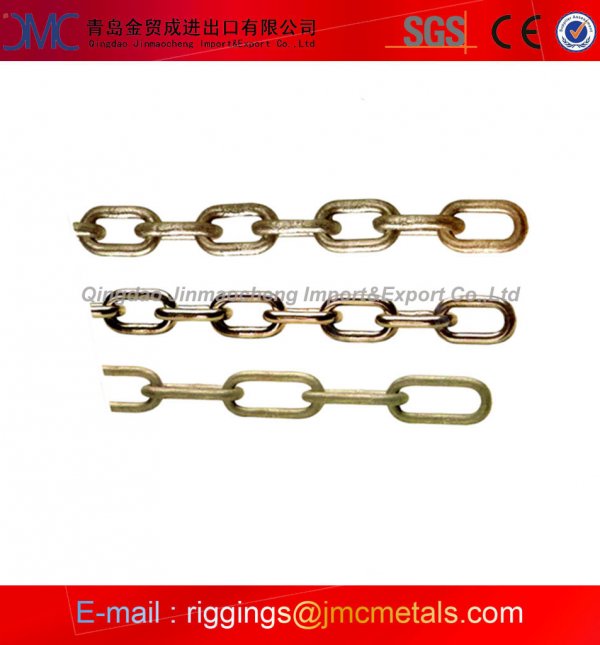

| Ordinary Mild Steel Link Chain-Short Link Chain | |||||||
| Link Specification | Test Load | Breaking Load | Net WT per 200FT(KG) | ||||
| D | L | W | |||||
| IN | MM | MM | M | KG | KG | B.F. | H.D.G. |
| 1/8 | 3.20 | 16 | 12 | 200 | 400 | 11.40 | 11.74 |
| 5/32 | 4.00 | 18.5 | 14.5 | 300 | 600 | 18.60 | 19.00 |
| 3/16 | 4.70 | 19 | 17 | 400 | 800 | 26.20 | 27.00 |
| 7/32 | 5.50 | 20 | 19 | 550 | 1100 | 36.80 | 38.00 |
| 1/4 | 6.35 | 22 | 21 | 750 | 1500 | 50.00 | 51.50 |
| 5/16 | 7.94 | 26.5 | 27.3 | 1200 | 2400 | 80.00 | 82.40 |
| 3/8 | 9.50 | 30 | 32 | 1700 | 3400 | 122.00 | 125.70 |
| 7/16 | 11.11 | 34 | 36 | 2300 | 4600 | 164.00 | 169.00 |
| 1/2 | 12.70 | 39 | 43 | 3000 | 6000 | 210.00 | 216.00 |
| 5/8 | 15.80 | 45 | 53 | 4700 | 9400 | 334.00 | 344.00 |
| 3/4 | 19.00 | 55 | 63 | 6800 | 13600 | 485.00 | 499.00 |
| 7/8 | 22.20 | 64 | 74 | 9250 | 18500 | 656.00 | 675.00 |
| 1 | 25.40 | 73 | 84 | 12150 | 24300 | 870.00 | 896.00 |
| Ordinary Mild Steel Link Chain-Medium Link Chain | |||||||
| Link Specification | Test Load | Breaking Load | Net WT per 200FT(KG) | ||||
| D | L | W | |||||
| IN | MM | MM | MM | KG | KG | B.F. | H.D.G. |
| 1/8 | 3.20 | 20 | 12 | 200 | 400 | 10.80 | 11.00 |
| 5/32 | 4.00 | 23 | 15 | 300 | 600 | 17.40 | 18.00 |
| 3/16 | 4.70 | 25 | 18 | 400 | 800 | 24.40 | 25.00 |
| 7/32 | 5.50 | 26 | 19 | 550 | 1100 | 34.00 | 35.00 |
| 1/4 | 6.35 | 26 | 23 | 750 | 1500 | 48.80 | 50.00 |
| 5/16 | 7.94 | 32 | 29 | 1200 | 2400 | 76.00 | 78.00 |
| 3/8 | 9.50 | 35 | 35 | 1700 | 3400 | 111.00 | 114.00 |
| 7/16 | 11.11 | 38 | 38 | 2300 | 4600 | 154.00 | 158.00 |
| 1/2 | 12.70 | 50 | 45.5 | 3000 | 6000 | 194.00 | 200.00 |
| 5/8 | 15.80 | 60 | 56.7 | 4700 | 9400 | 303.00 | 312.00 |
| 3/4 | 19.00 | 76 | 69 | 6800 | 13600 | 432.00 | 445.00 |
| 7/8 | 22.20 | 90 | 80 | 9250 | 18500 | 586.00 | 603.00 |
| 1 | 25.40 | 105 | 95 | 12150 | 24300 | 770.00 | 792.00 |
| Ordinary Mild Steel Link Chain-Long Link Chain | |||||||
| Link Specification | Test Load | Breaking Load | Net WT per 200FT(KG) | ||||
| D | L | W | |||||
| IN | MM | MM | MM | KG | KG | B.F. | H.D.G. |
| 1/8 | 3.20 | 23 | 12 | 200 | 400 | 10.40 | 10.70 |
| 5/32 | 4.00 | 27 | 15 | 300 | 600 | 16.60 | 17.50 |
| 3/16 | 4.70 | 31 | 17 | 400 | 800 | 22.40 | 23.30 |
| 7/32 | 5.50 | 32 | 19 | 550 | 1100 | 32.00 | 33.00 |
| 1/4 | 6.35 | 33 | 21 | 750 | 1500 | 43.50 | 44.80 |
| 5/16 | 7.94 | 48 | 31 | 1200 | 2400 | 68.00 | 70.00 |
| 3/8 | 9.50 | 60 | 37 | 1700 | 3400 | 96.00 | 99.00 |
| 7/16 | 11.11 | 71 | 41 | 2300 | 4600 | 126.00 | 129.00 |
| 1/2 | 12.70 | 85 | 48.5 | 3000 | 6000 | 167.00 | 172.00 |
| 5/8 | 15.80 | 114 | 61.5 | 4700 | 9400 | 256.00 | 264.00 |
| 3/4 | 19.00 | 125 | 75 | 6800 | 13600 | 381.00 | 392.00 |
| 7/8 | 22.20 | 140 | 88 | 9250 | 18500 | 527.00 | 543.00 |
| 1" | 25.40 | 155 | 100 | 12150 | 24300 | 696.00 | 716.00 |
