Brand Name: JMC
Model Number: US Type
Material: Stainless Steel
Size: 1/8"-5/8"
Surface Treatment: Polished
Technology: Casting
Application: Wire Rope Fittings
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

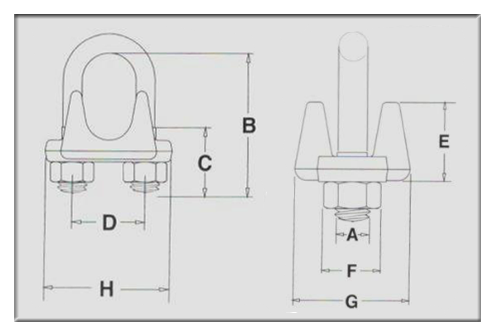

| Stainless Steel Wire Rope Clips SS-450 | |||||||||
| ROPE SIZE | DIMENSIONS (IN.) | ||||||||
| (IN.) | (MM） | A | B | C | D | E | F | G | H |
| 1/8 | 3-4 | 0.22 | 0.72 | 0.44 | 0.47 | 0.41 | 0.38 | 0.81 | 0.94 |
| 3/16 | 5 | 0.25 | 0.97 | 0.56 | 0.59 | 0.50 | 0.44 | 0.94 | 1.16 |
| 1/4 | 6-7 | 0.31 | 1.03 | 0.50 | 0.75 | 0.66 | 0.56 | 1.19 | 1.44 |
| 3/8 | 9-10 | 0.44 | 1.50 | 0.75 | 1.00 | 0.91 | 0.75 | 1.63 | 1.94 |
| 1/2 | 12-13 | 0.50 | 1.88 | 1.00 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 |
| 5/8 | 16 | 0.56 | 2.38 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.50 |
