Brand Name: JMC
Model Number: US Type. Meets the performance requirements of Federal Specification RR-C-271F, Type VII, CLASS 3, except for those provisions required of the contractor.
Material: Carbon Steel
Size: 1/4"-1.1/2"
Surface Treatment: H.D.Galv
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

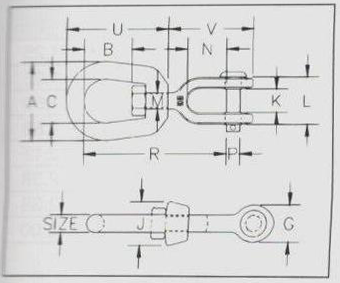

| Jaw End Swivels G-403 | ||||||||||||||
| Size | W.L.L. | DIMENSIONS (IN.) | ||||||||||||
| (IN.) | (LBS.) | A | B | C | G | J | K | L | M | N | P | R | U | V |
| 1/4 | 850 | 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 1.03 | 0.31 | 0.88 | 0.25 | 2.63 | 1.69 | 1.69 |
| 5/16 | 1250 | 1.63 | 0.81 | 1.00 | 0.81 | 0.81 | 0.50 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 2.06 | 1.81 |
| 3/8 | 2250 | 2.00 | 0.94 | 1.25 | 1.00 | 1.00 | 0.63 | 1.41 | 0.50 | 1.06 | 0.38 | 3.63 | 2.50 | 2.25 |
| 1/2 | 3600 | 2.50 | 1.31 | 1.50 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.50 | 4.50 | 3.19 | 2.88 |
| 5/8 | 5200 | 3.00 | 1.56 | 1.75 | 1.63 | 1.50 | 0.94 | 2.06 | 0.75 | 1.50 | 0.63 | 5.31 | 3.88 | 3.44 |
| 3/4 | 7200 | 3.50 | 1.75 | 2.00 | 1.88 | 1.88 | 1.13 | 2.53 | 0.88 | 1.75 | 0.75 | 6.06 | 4.31 | 4.00 |
| 7/8 | 10000 | 4.00 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1.00 | 2.06 | 0.88 | 7.00 | 5.00 | 4.53 |
| 1 | 12500 | 4.50 | 2.31 | 2.50 | 2.63 | 2.38 | 1.75 | 3.72 | 1.13 | 2.81 | 1.13 | 8.56 | 5.75 | 5.94 |
| 1.1/4 | 18000 | 5.69 | 2.69 | 3.13 | 3.13 | 3.00 | 2.06 | 4.31 | 1.63 | 2.81 | 1.38 | 9.75 | 7.06 | 6.38 |
| 1.1/2 | 45200 | 7.00 | 3.88 | 4.00 | 5.63 | 4.00 | 2.88 | 6.00 | 2.25 | 4.44 | 2.25 | 14.25 | 10.00 | 10.84 |
