Brand Name: JMC
Model Number: US Type
Material: Carbon steel, Alloy Steel
Size: 3/4T-10T
Surface Treatment: Painted Color
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

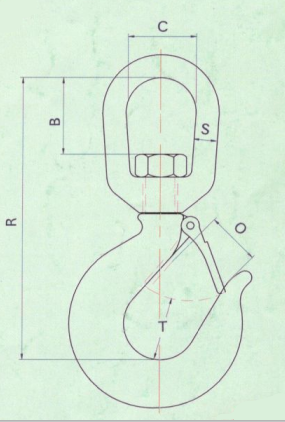

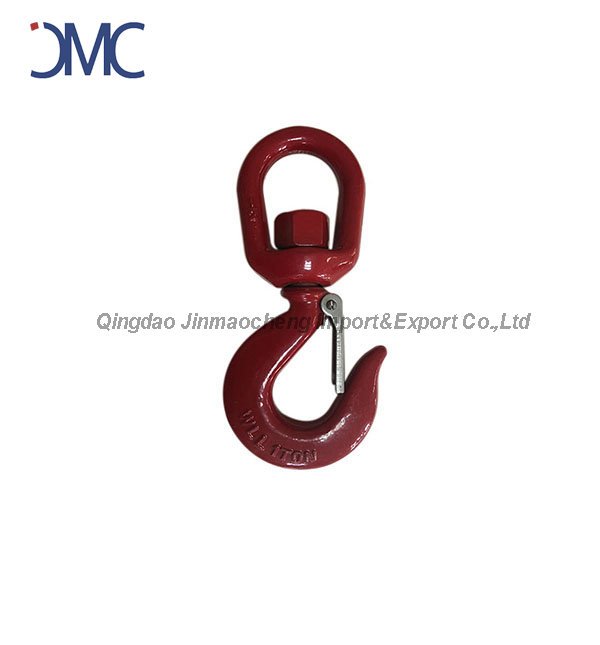

| Swivel Hook With Latch | |||||||
| WORKING LOAD LIMIT (TONS) | DIMENSIONS(IN.) | ||||||
| 322C | 322A | B | C | O | R | S | T |
| 3/4 | 1 | 15/16 | 1.1/4 | 7/8 | 4.15/32 | 3/8 | 13/16 |
| 1 | 1.1/2 | 1.5/16 | 1.1/2 | 31/32 | 5.9/32 | 1/2 | 13/16 |
| 1.1/2 | 2 | 1.5/8 | 1.3/4 | 1 | 6.1/64 | 5/8 | 27/32 |
| 2 | 3 | 1.9/16 | 1.3/4 | 1.1/8 | 6.3/8 | 5/8 | 1.3/16 |
| 3 | 4.1/2 | 1.3/4 | 2 | 1.11/32 | 7.13/32 | 3/4 | 1.3/8 |
| 5 | 7 | 2.5/16 | 2.1/2 | 1.11/16 | 9.19/32 | 1 | 1.25/32 |
| 7.1/2 | 11 | 2.3/8 | 2.3/4 | 2.1/16 | 11.1/8 | 1.1/8 | 2.1/8 |
| 10 | 15 | 2.13/16 | 3.1/8 | 2.1/4 | 11.15/16 | 1.1/4 | 2.1/2 |
