Brand Name: JMC
Model Number: US Type
Material: Aluminum
Size: 1/32"-1"
Surface Treatment: Self Color
Application: Wire rope fittings
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

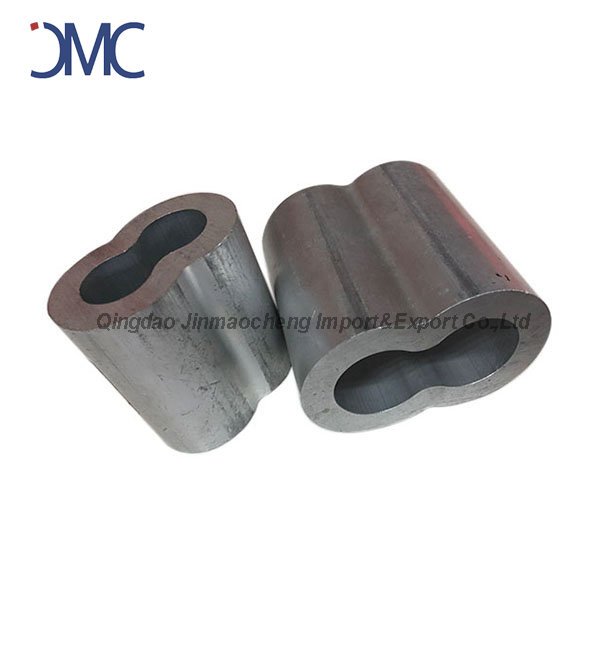

| Aluminum Hourgalss Sleeve | ||||
| WIRE ROPE DIA. | DIMENSIONS (MM) | |||
| (IN.) | A | B | C | LENGTH |
| 1/4 | 13.6±0.2 | 20.7±0.2 | 7.3±0.2 | 28.5±0.5 |
| 5/16 | 17.3±0.2 | 26.1±0.2 | 9.5±0.2 | 31.7±0.5 |
| 3/8 | 19.05±0.2 | 29.3±0.2 | 11.1±0.2 | 36.5±0.5 |
| 7/16 | 23.8±0.2 | 36.5±0.2 | 12.7±0.2 | 42.8±0.5 |
| 1/2 | 26.9±0.3 | 41.2±0.3 | 14.2±0.3 | 50.8±0.5 |
| 9/16 | 28.6±0.3 | 44.4±0.3 | 15.9±0.4 | 53.9±0.5 |
| 5/8 | 31.7±0.3 | 49.2±0.3 | 17.5±0.4 | 56.0±0.5 |
| 3/4 | 40.5±0.3 | 62.0±0.3 | 21.5±0.4 | 72.0±0.5 |
| 1 | 48.0±0.3 | 76.0±0.3 | 28.0±0.4 | 84.0±0.5 |
