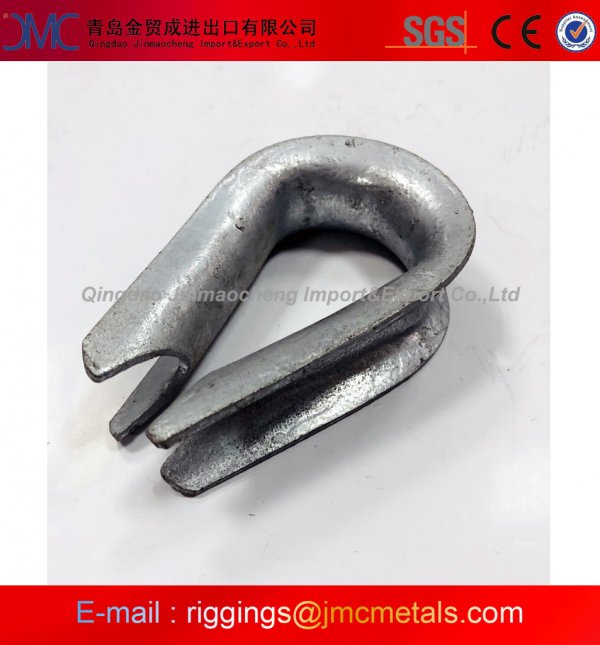

Brand Name: JMC
Model Number: US Type. G411 meets the performance requirements of Federal Specification FF-T-276b Type II, except for those provisions required of the contractor.
Material: Carbon Steel
Size: 1/8"-1.1/4"
Surface Treatment: H.D. Galv.
Application: Wire Rope Fitting
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company
| Standard Wire Rope Thimbles G-411 | |||||||||

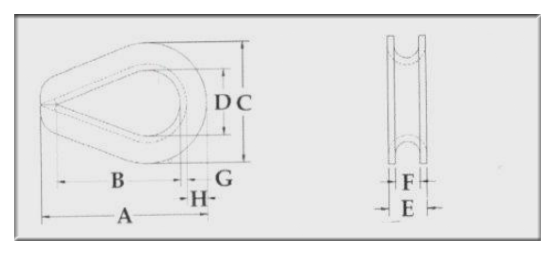

| ROPE DIA. | DIMENSIONS (IN.) | ||||||||
| (IN.) | (MM) | A | B | C | D | E | F | G | H |
| 1/8 | 3-4 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 |
| 3/16 | 5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 |
| 1/4 | 6-7 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 |
| 5/16 | 8 | 2.13 | 1.50 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 |
| 3/8 | 9-10 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 |
| 1/2 | 11-13 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 |
| 5/8 | 16 | 3.50 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 |
| 3/4 | 18-20 | 3.75 | 2.50 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 |
| 7/8 | 22 | 5.00 | 3.50 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 |
| 1 | 24-26 | 5.69 | 4.25 | 3.75 | 2.50 | 1.39 | 1.06 | 0.16 | 0.41 |
| 1.1/8-1.1/4 | 28-32 | 6.25 | 4.50 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.50 |
