Brand Name: JMC
Model Number: US Type
Material: Carbon Steel
Size: 1/4"(6mm)-1.1/4"(32mm)
Surface Treatment: E. Galv, H.D. Galv, Color Painted
Technology: Forged
Application: Security
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

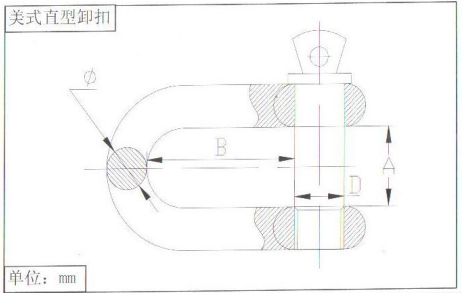

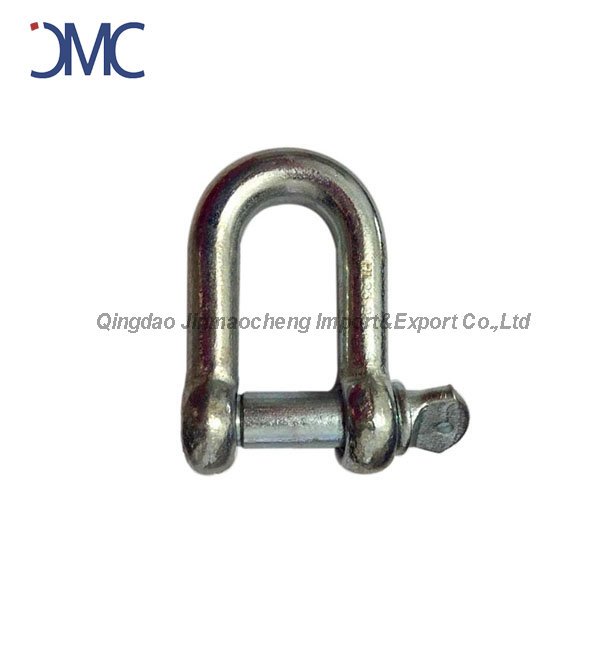

| Commerial Type Screw Pin Chain Shackle | ||||||
| SIZE | Φ | D | A | B | WEIGHT | W.L.L. |
| IN/MM | MM | MM | MM | MM | KG/PC | TON |
| 1/4"(6MM) | 6.0 | 7.8 | 12 | 22 | 0.035 | 0.23 |
| 5/16"(8MM) | 7.8 | 9.3 | 13 | 26 | 0.057 | 0.30 |
| 3/8"(10MM) | 9.3 | 11.3 | 16 | 31 | 0.109 | 0.40 |
| 7/16"(11MM) | 10.8 | 12.0 | 18 | 36 | 0.165 | 0.50 |
| 1/2"(12MM) | 12.3 | 15.3 | 20 | 41 | 0.264 | 0.65 |
| 5/8"(16MM) | 15.3 | 19.0 | 27 | 51 | 0.501 | 1.00 |
| 3/4"(19MM) | 19.0 | 21.0 | 31 | 60 | 0.820 | 1.50 |
| 7/8"(22MM) | 22.0 | 24.0 | 36 | 71 | 1.310 | 2.00 |
| 1"(25MM) | 25.0 | 27.5 | 43 | 81 | 1.780 | 2.50 |
| 1.1/8"(28MM) | 27.5 | 31.0 | 46 | 90 | 2.300 | 3.20 |
| 1.1/4"(32MM) | 32.0 | 35.0 | 51 | 100 | 3.165 | 4.00 |
