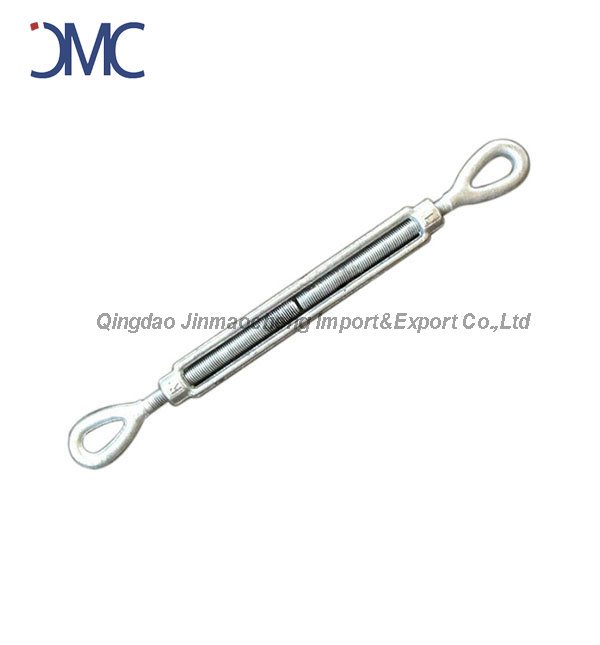

Brand Name: JMC
Model Number: US Type. Meets the performance requirements of Federal Specifications FF-T-791b, Type 1 From 1-CLASS 4, and ASTM F-1145, except for those provisions required of the contractor.
Material: Carbon Steel
Size: 1/4"*4"-2.3/4"*24"
Surface Treatment: E. Galv, H.D. Galv.
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company
<td

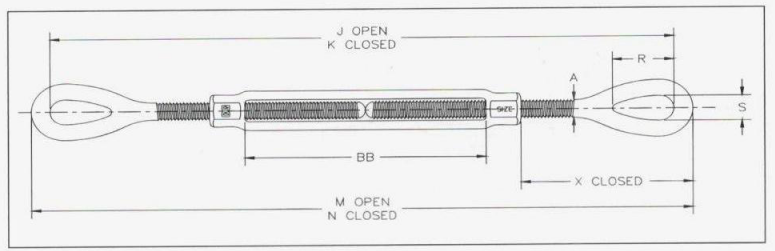

| U.S. TYPE TURNBUCKLE EYE AND EYE | ||||||||||
| THREAD DIA.&TAKE UP | W.L.L | DIMENSIONS(IN.) | ||||||||
| (IN.) | (LBS.) | A | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB |
| 1/4*4 | 500 | 0.25 | 11.94 | 7.94 | 12.38 | 8.38 | 0.81 | 0.34 | 1.76 | 4.07 |
| 5/16*4.1/2 | 800 | 0.31 | 13.92 | 9.42 | 14.48 | 9.98 | 0.95 | 0.44 | 2.20 | 4.58 |
| 3/8*6 | 1200 | 0.38 | 17.56 | 11.56 | 18.24 | 12.24 | 1.13 | 0.53 | 2.48 | 6.10 |
| 1/2*6 | 2200 | 0.50 | 19.94 | 13.94 | 20.82 | 14.82 | 1.41 | 0.71 | 3.56 | 6.03 |
| 1/2*12 | 2200 | 0.50 | 32.23 | 20.23 | 33.11 | 21.11 | 1.41 | 0.71 | 3.54 | 12.36 |
| 5/8*6 | 3500 | 0.63 | 21.72 | 15.72 | 22.72 | 16.72 | 1.80 | 0.88 | 4.35 | 6.03 |
| 5/8*12 | 3500 | 0.63 | 34.06 | 22.06 | 35.06 | 23.06 | 1.80 | 0.88 | 4.34 | 12.39 |
| 3/4*6 | 5200 | 0.75 | 23.24 | 17.24 | 24.50 | 18.50 | 2.09 | 1.00 | 5.12 | 6.13 |
| 3/4*12 | 5200 | 0.75 | 35.64 | 23.64 | 36.90 | 24.90 | 2.09 | 1.00 | 5.09 | 12.59 |
| 3/4*18 | 5200 | 0.75 | 47.64 | 29.64 | 48.90 | 30.90 | 2.09 | 1.00 | 5.12 | |
