Brand Name: JMC
Model Number: US Type
Material: Carbon Steel
Size: 1/4"-5/8"
Surface Treatment: H.D. Galv.
Technology: Forged
Application: Wire Rope Fitting
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

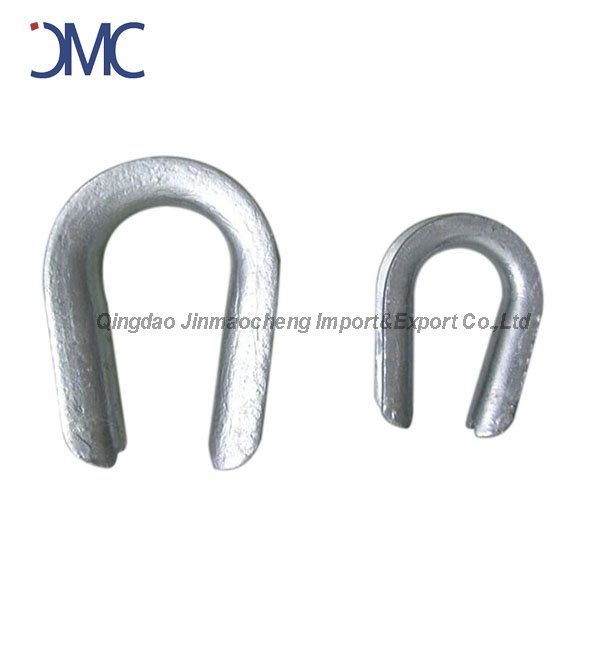

| Open Pattern Thimbles G-408 | |||||||

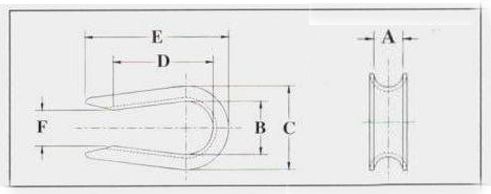

| ROPE DIA. | DIMENSIONS (IN.) | ||||||
| (IN.) | (MM) | A | B | C | D | E | F |
| 1/4 | 6-7 | 0.28 | 0.69 | 1.06 | 1.41 | 2.03 | 0.38 |
| 1/3 | 8 | 0.34 | 0.81 | 1.25 | 1.53 | 2.16 | 0.50 |
| 3/8 | 9-10 | 0.44 | 0.94 | 1.47 | 1.72 | 2.47 | 0.62 |
| 1/2 | 11-13 | 0.53 | 1.12 | 1.75 | 1.47 | 2.84 | 0.75 |
| 5/8 | 16 | 0.66 | 1.38 | 2.38 | 2.34 | 3.59 | 1.00 |
