Brand Name: JMC
Material: Malleable Iron
Size: 6mm-50mm
Surface Treatment: E. Galv, H.D. Galv
Technology: Casting
Application: Wire Rope Fittings
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

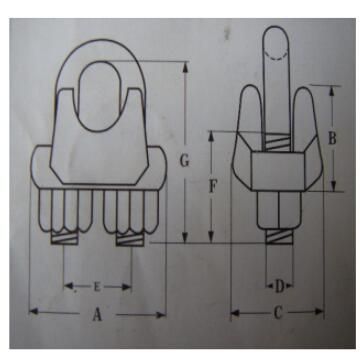

| A Type Wire Rope Clip | |||||||
| Size | Dimensions (mm) | ||||||
| (mm) | D | F | E | G | A | B | C |
| 6 | M5 | 14.00 | 12.00 | 24.00 | 23.00 | 14.00 | 17.00 |
| 8 | M6 | 16.00 | 15.00 | 31.00 | 28.00 | 17.00 | 21.00 |
| 10 | M8 | 20.00 | 19.00 | 38.00 | 38.00 | 21.00 | 28.00 |
| 12 | M10 | 25.00 | 24.00 | 47.00 | 45.00 | 27.00 | 34.00 |
| 15 | M12 | 30.00 | 29.00 | 56.00 | 52.00 | 32.00 | 40.00 |
| 20 | M14 | 36.00 | 36.00 | 70.00 | 62.00 | 38.00 | 46.50 |
| 22 | M16 | 39.00 | 40.00 | 77.00 | 69.00 | 43.00 | 51.50 |
| 25 | M18 | 44.00 | 43.00 | 90.00 | 76.00 | 50.00 | 56.00 |
| 28 | M20 | 48.00 | 48.00 | 95.00 | 85.00 | 57.00 | 62.00 |
| 32 | M22 | 51.00 | 55.00 | 108.00 | 93.00 | 61.00 | 67.00 |
| 40 | M24 | 62.00 | 64.00 | 120.00 | 111.00 | 73.00 | 81.00 |
| 45 | M27 | 70.00 | 72.00 | 137.00 | 123.00 | 86.00 | 88.00 |
| 50 | M30 | 80.00 | 80.00 | 154.00 | 135.00 | 95.00 | 95.00 |
