Brand Name: JMC
Model Number: European Type
Material: Carbon Steel
Size: M6-M100
Surface Treatment: E.galv. H.D.Galv
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

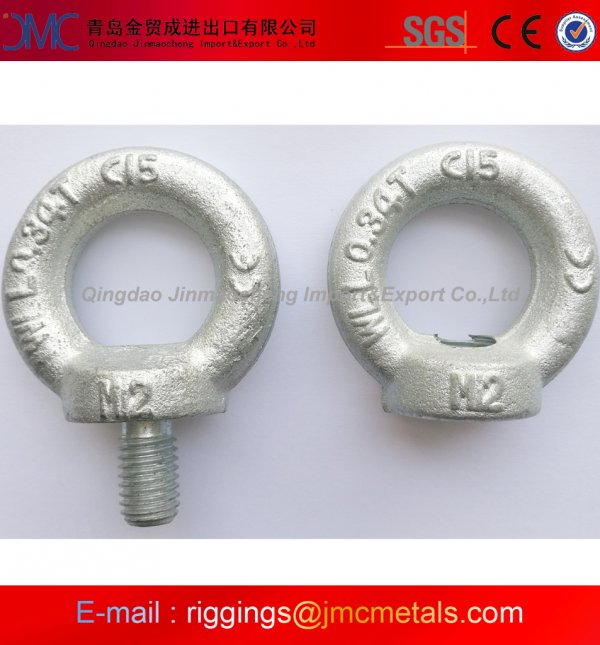

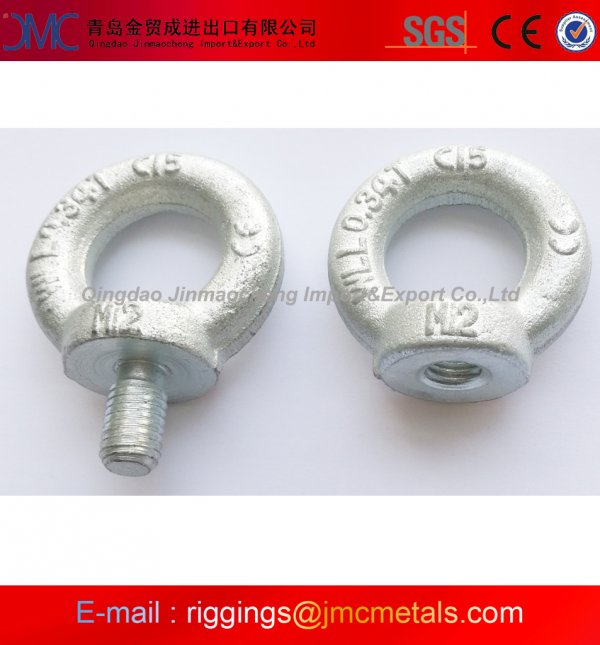

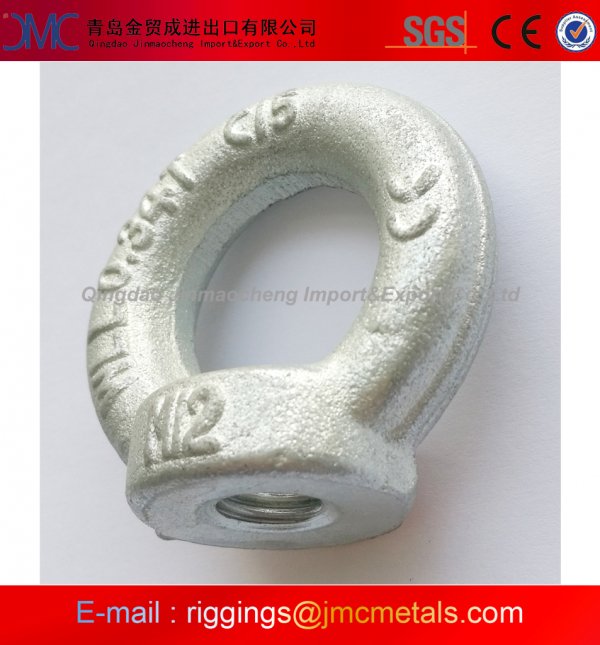

| Eye Nut DIN582 | |||||||

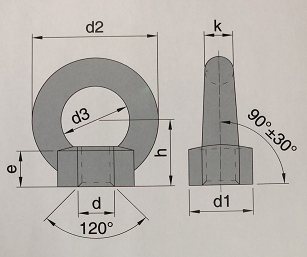

| SIZE | W.L.L. | DIMENSIONS (MM.) | |||||
| (MM) | (TON) | d1 | d2 | d3 | e | h | k |
| M6 | 0.08 | 20 | 36 | 20 | 8.5 | 18 | 8 |
| M8 | 0.14 | 20 | 36 | 20 | 8.5 | 18 | 8 |
| M10 | 0.23 | 25 | 45 | 25 | 10 | 22.5 | 10 |
| M12 | 0.34 | 30 | 54 | 30 | 11 | 26 | 12 |
| M14 | 0.49 | 35 | 63 | 35 | 13 | 30.5 | 14 |
| M16 | 0.7 | 35 | 63 | 35 | 13 | 30.5 | 14 |
| M18 | 0.93 | 40 | 72 | 40 | 16 | 35 | 16 |
| M20 | 1.2 | 40 | 72 | 40 | 16 | 35 | 16 |
| M22 | 1.5 | 45 | 81 | 45 | 18 | 40 | 18 |
| M24 | 1.8 | 50 | 90 | 50 | 20 | 45 | 20 |
| M27 | 2.5 | 50 | 90 | 50 | 20 | 45 | 20 |
| M30 | 3.6 | 65 | 108 | 60 | 25 | 55 | 24 |
| M33 | 4.3 | 65 | 108 | 60 | 25 | 55 | 24 |
| M36 | 5.1 | 75 | 126 | 70 | 30 | 65 | 28 |
| M39 | 6.1 | 75 | 126 | 70 | 30 | 65 | 28 |
| M42 | 7 | 85 | 144 | 80 | 35 | 75 | 32 |
| M45 | 8 | 85 | 144 | 80 | 35 | 75 | 32 |
| M48 | 8.6 | 100 | 166 | 90 | 40 | 85 | 38 |
| M52 | 9.9 | 100 | 166 | 90 | 40 | 85 | 38 |
| M56 | 11.5 | 110 | 184 | 100 | 45 | 95 | 42 |
| M64 | 16 | 120 | 206 | 110 | 50 | 105 | 48 |
| M72 | 20 | 150 | 260 | 140 | 60 | 130 | 60 |
| M80 | 28 | 170 | 296 | 160 | 70 | 150 | 68 |
| M100 | 40 | 190 | 330 | 180 | 80 | 165 | 75 |
