Brand Name: JMC
Model Number: US Type
Material: Carbon Steel
Size: 1/4"*2"-1.1/2"*15"
Surface Treatment: E.galv. H.D.Galv
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

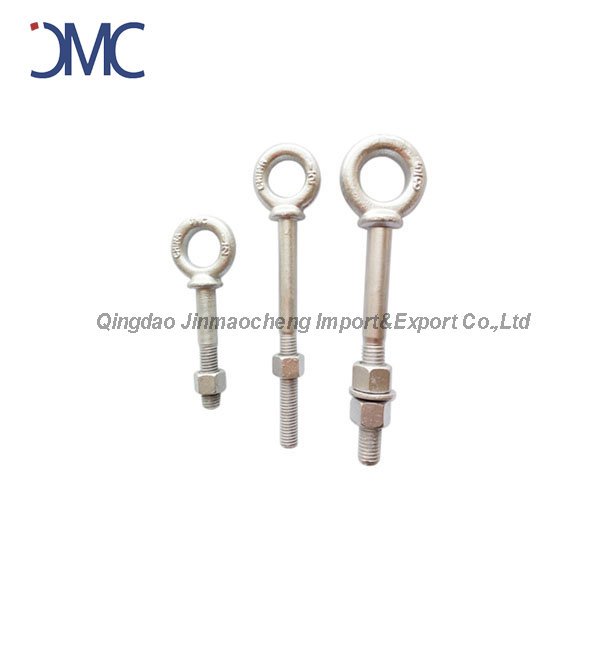

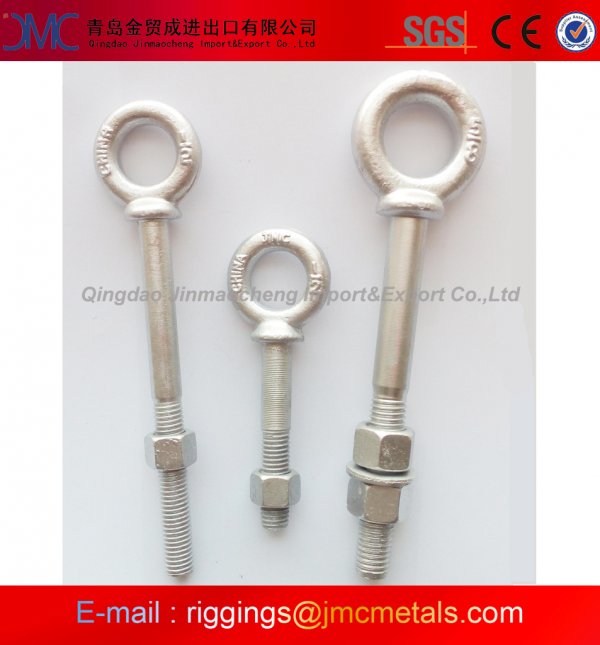

| Shoulder Nut Eye Bolts G-277 | ||||||||||

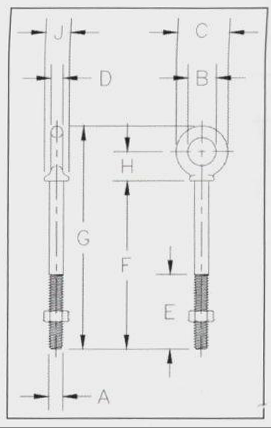

| SHANK DIA.&LENGTH | W.L.L. | DIMENSIONS (IN.) | ||||||||
| (IN.) | (LBS.) | A | B | C | D | E | F | G | H | J |
| 1/4*2 | 650 | 0.25 | 0.50 | 0.88 | 0.19 | 1.50 | 2.00 | 2.94 | 0.50 | 0.47 |
| 1/4*4 | 650 | 0.25 | 0.50 | 0.88 | 0.19 | 2.50 | 4.00 | 4.94 | 0.50 | 0.47 |
| 5/16*2.1/4 | 1200 | 0.31 | 0.62 | 1.12 | 0.25 | 1.50 | 2.25 | 3.50 | 0.69 | 0.56 |
| 5/16*4.1/4 | 1200 | 0.31 | 0.62 | 1.12 | 0.25 | 2.50 | 4.25 | 5.50 | 0.69 | 0.56 |
| 3/8*2.1/2 | 1550 | 0.38 | 0.75 | 1.38 | 0.31 | 1.50 | 2.50 | 3.97 | 0.78 | 0.66 |
| 3/8*4.1/2 | 1550 | 0.38 | 0.75 | 1.38 | 0.31 | 2.50 | 4.50 | 5.97 | 0.78 | 0.66 |
| 1/2*3.1/4 | 2600 | 0.50 | 1.00 | 1.75 | 0.38 | 1.50 | 3.25 | 5.12 | 1.00 | 0.91 |
| 1/2*6 | 2600 | 0.50 | 1.00 | 1.75 | 0.38 | 3.00 | 6.00 | 7.88 | 1.00 | 0.91 |
| 5/8*4 | 5200 | 0.62 | 1.25 | 2.25 | 0.50 | 2.00 | 4.00 | 6.44 | 1.31 | 1.12 |
| 5/8*6 | 5200 | 0.62 | 1.25 | 2.25 | 0.50 | 3.00 | 6.00 | 8.44 | 1.31 | 1.12 |
| 3/4*4.1/2 | 7200 | 0.75 | 1.50 | 2.75 | 0.62 | 2.00 | 4.50 | 7.44 | 1.56 | 1.38 |
| 3/4*6 | 7200 | 0.75 | 1.50 | 2.75 | 0.62 | 3.00 | 6.00 | 8.94 | 1.56 | 1.38 |
| 7/8*5 | 10600 | 0.88 | 1.75 | 3.25 | 0.75 | 2.50 | 5.00 | 8.46 | 1.84 | 1.56 |
| 1*6 | 13300 | 1.00 | 2.00 | 3.75 | 0.88 | 3.00 | 6.00 | 9.97 | 2.09 | 1.81 |
| 1*9 | 13300 | 1.00 | 2.00 | 3.75 | 0.88 | 4.00 | 9.00 | 12.97 | 2.09 | 1.81 |
| 1.1/4*8 | 21000 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 8.00 | 12.72 | 2.47 | 2.28 |
| 1.1/4*12 | 21000 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 12.00 | 16.72 | 2.47 | 2.28 |
| 1.1/2*15 | 24000 | 1.50 | 3.00 | 5.50 | 1.25 | 6.00 | 15.00 | 20.75 | 3.00 | 2.75 |
