Brand Name: JMC
Model Number: US Type. All sizes 1/4"and larger, meet the performance requirements of Federal Specification FF-C-450 Type 1 CLASS 1, except for those provisions required of the contractor.
Material: Carbon Steel
Size: 1/8"-3.1/2"
Surface Treatment: E. Galv, H.D. Galv, Color Painted
Technology: Forged
Application: Wire Rope Fittings
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

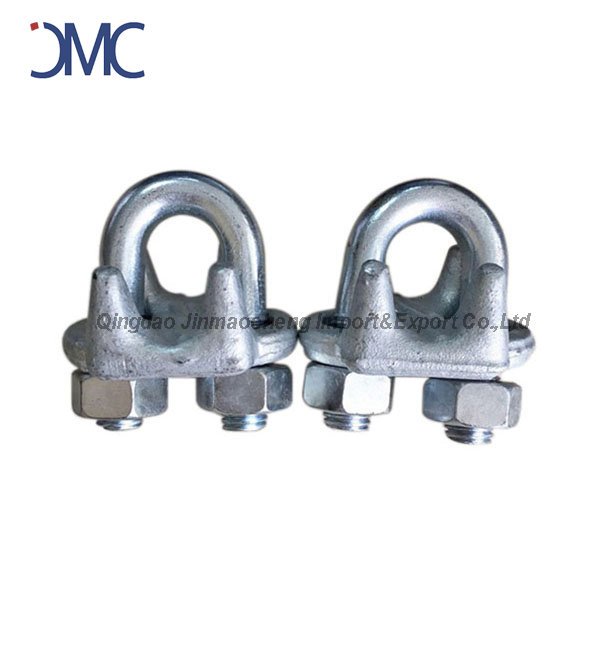

| U.S. type Drop forged Wire Rope Clips G-450 | |||||||||

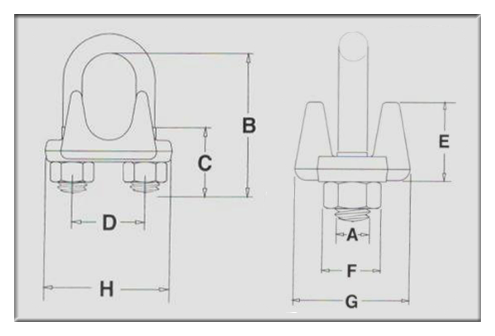

| ROPE SIZE | DIMENSIONS (IN.) | ||||||||
| (IN.) | (MM) | A | B | C | D | E | F | G | H |
| 1/8 | 3-4 | 0.22 | 0.72 | 0.44 | 0.47 | 0.37 | 0.38 | 0.81 | 0.99 |
| 3/16 | 5 | 0.25 | 0.97 | 0.56 | 0.59 | 0.50 | 0.44 | 0.94 | 1.18 |
| 1/4 | 6-7 | 0.31 | 1.03 | 0.50 | 0.75 | 0.66 | 0.56 | 1.19 | 1.43 |
| 5/16 | 8 | 0.38 | 1.38 | 0.75 | 0.88 | 0.73 | 0.69 | 1.31 | 1.66 |
| 3/8 | 9-10 | 0.44 | 1.50 | 0.75 | 1.00 | 0.91 | 0.75 | 1.63 | 1.94 |
| 7/16 | 11 | 0.50 | 1.88 | 1.00 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 |
| 1/2 | 12-13 | 0.50 | 1.88 | 1.00 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 |
| 9/16 | 14-15 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.50 |
| 5/8 | 16 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.50 |
| 3/4 | 18-20 | 0.62 | 2.75 | 1.44 | 1.50 | 1.39 | 1.06 | 2.25 | 2.84 |
| 7/8 | 22 | 0.75 | 3.12 | 1.62 | 1.75 | 1.58 | 1.25 | 2.44 | 3.16 |
| 1 | 24-26 | 0.75 | 3.50 | 1.81 | 1.88 | 1.77 | 1.25 | 2.63 | 3.47 |
| 1.1/8 | 28-30 | 0.75 | 3.88 | 2.00 | 2.00 | 1.91 | 1.25 | 2.81 | 3.59 |
| 1.1/4 | 32-34 | 0.88 | 4.44 | 2.22 | 2.31 | 2.17 | 1.44 | 3.13 | 4.13 |
| 1.3/8 | 36 | 0.88 | 4.44 | 2.22 | 2.38 | 2.31 | 1.44 | 3.13 | 4.19 |
| 1.1/2 | 38 | 0.88 | 4.94 | 2.38 | 2.59 | 2.44 | 1.44 | 3.41 | 4.44 |
| 1.5/8 | 41-42 | 1.00 | 5.31 | 2.62 | 2.75 | 2.66 | 1.63 | 3.63 | 4.75 |
| 1.3/4 | 44-46 | 1.13 | 5.75 | 2.75 | 3.06 | 2.92 | 1.81 | 3.81 | 5.24 |
| 2 | 48-52 | 1.25 | 6.44 | 3.00 | 3.38 | 3.28 | 2.00 | 4.44 | 5.88 |
| 2.1/4 | 56-58 | 1.25 | 7.13 | 3.19 | 3.88 | 3.19 | 2.00 | 4.56 | 6.38 |
| 2.1/2 | 62-65 | 1.25 | 7.69 | 3.44 | 4.13 | 3.69 | 2.00 | 4.05 | 6.63 |
| 2.3/4 | 68-72 | 1.25 | 8.31 | 3.56 | 4.38 | 4.88 | 2.00 | 5.00 | 6.88 |
| 3 | 75-78 | 1.50 | 9.19 | 3.88 | 4.75 | 4.44 | 2.38 | 5.31 | 7.61 |
| 3.1/2 | 85-90 | 1.50 | 10.75 | 4.50 | 5.50 | 6.00 | 2.38 | 6.19 | 8.38 |
