Brand Name: JMC
Material: Alloy Steel
Size: 1/4"-5/8"
Surface: Self Color, Blacken
Packing: In gunny bag or iron drum, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Comapny

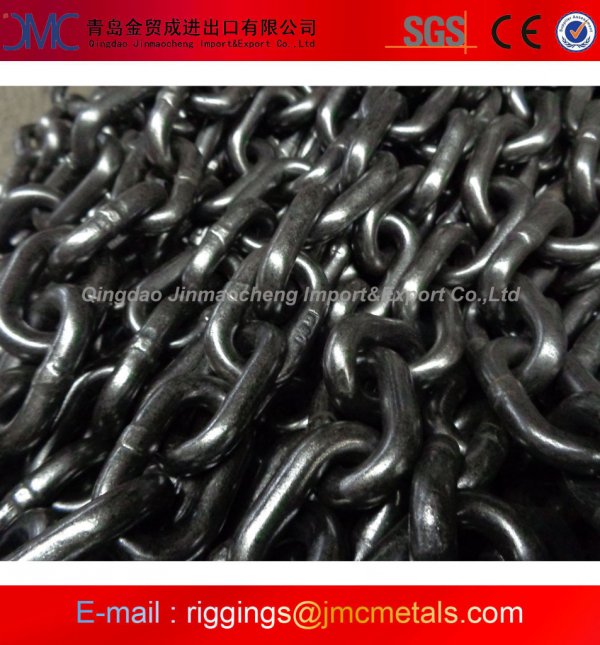

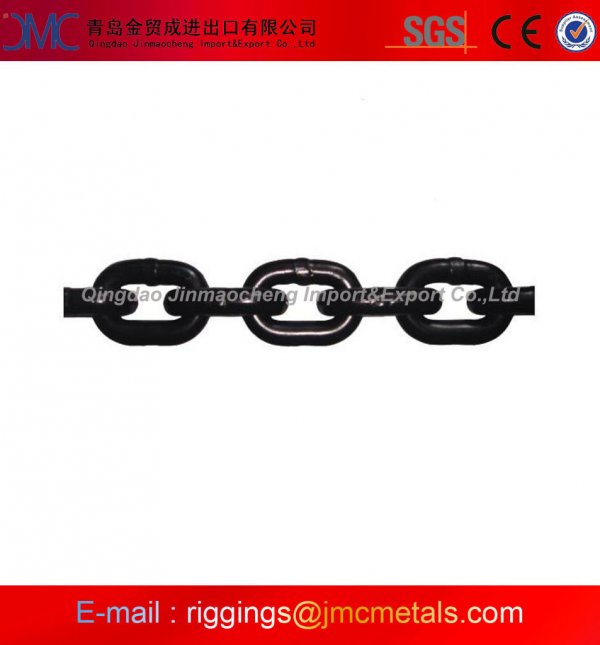

| G80 Black Link Chain | ||||||||
| Size | Material Size | Inside Length | Inside Width | Working Load | Proof Load | Breaking Load | Weight per 100FT | Weight per M |
| IN | MM | MM | MM | KG | KN | KN | KG | KG |
| 6.0 | 18.0 | 8.7 | 1150 | 22.5 | 45.0 | 24.3 | 0.80 | |
| 1/4 | 7.0 | 21.5 | 10.5 | 1570 | 30.8 | 61.6 | 33.0 | 1.08 |
| 5/16 | 8.0 | 24.0 | 12.0 | 2050 | 40.3 | 80.6 | 43.5 | 1.43 |
| 3/8 | 10.0 | 30.0 | 14.5 | 3200 | 63.0 | 126.0 | 67.6 | 2.22 |
| 1/2 | 13.0 | 39.0 | 19.0 | 5400 | 107.0 | 214.0 | 113.6 | 3.73 |
| 5/8 | 16.0 | 49.0 | 23.0 | 8200 | 161.0 | 322.0 | 170.3 | 5.58 |
