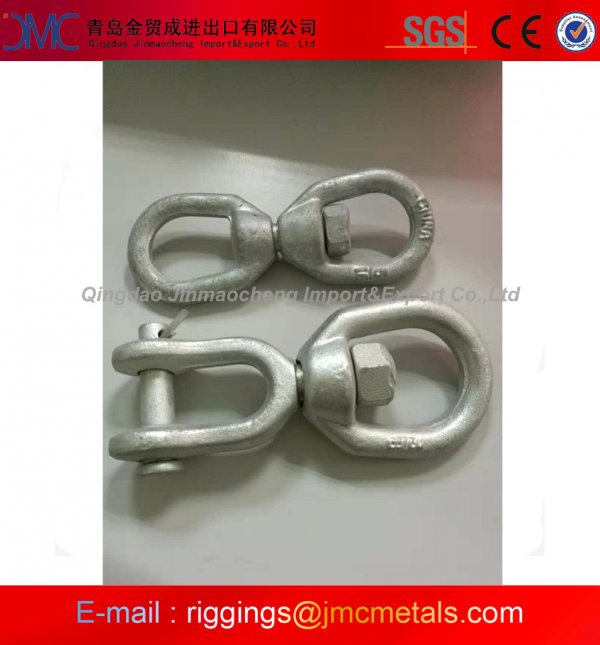

Brand Name: JMC
Model Number: US Type. Meets the performance requirements of Federal Specification RR-C-271F, Type VII, CLASS 1, except for those provisions required of the contractor.
Material: Carbon Steel
Size: 1/4"-1.1/2"
Surface Treatment: H.D.Galv.
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

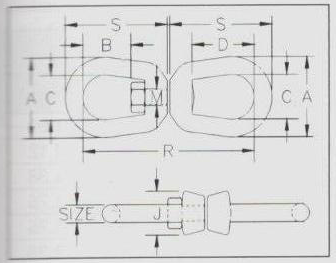

| Regular Swivels G-402 | |||||||||
| Size | W.L.L. | DIMENSIONS (IN.) | |||||||
| (IN.) | (LBS.) | A | B | C | D | J | M | R | S |
| 1/4 | 850 | 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 |
| 5/16 | 1250 | 1.63 | 0.81 | 1.00 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 |
| 3/8 | 2250 | 2.00 | 0.94 | 1.25 | 1.50 | 1.00 | 0.50 | 4.31 | 2.50 |
| 1/2 | 3600 | 2.50 | 1.31 | 1.50 | 2.00 | 1.31 | 0.63 | 5.44 | 3.19 |
| 5/8 | 5200 | 3.00 | 1.56 | 1.75 | 2.38 | 1.50 | 0.75 | 6.56 | 3.88 |
| 3/4 | 7200 | 3.50 | 1.75 | 2.00 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 |
| 7/8 | 10000 | 4.00 | 2.06 | 2.25 | 3.06 | 2.13 | 1.00 | 8.38 | 5.00 |
| 1 | 12500 | 4.50 | 2.31 | 2.50 | 3.50 | 2.38 | 1.13 | 9.63 | 5.75 |
| 1.1/4 | 18000 | 5.63 | 2.69 | 3.13 | 3.69 | 3.00 | 1.50 | 11.44 | 6.75 |
| 1.1/2 | 45200 | 7.09 | 3.88 | 4.09 | 3.88 | 3.75 | 2.25 | 16.69 | 9.91 |
