Brand Name: JMC
Model Number: US Type
Material: Carbon Steel
Size: 1/4"*2"-5/8"*4"
Surface Treatment: E.galv. H.D.Galv
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Bussines Type: Manufacturer, Trading Company

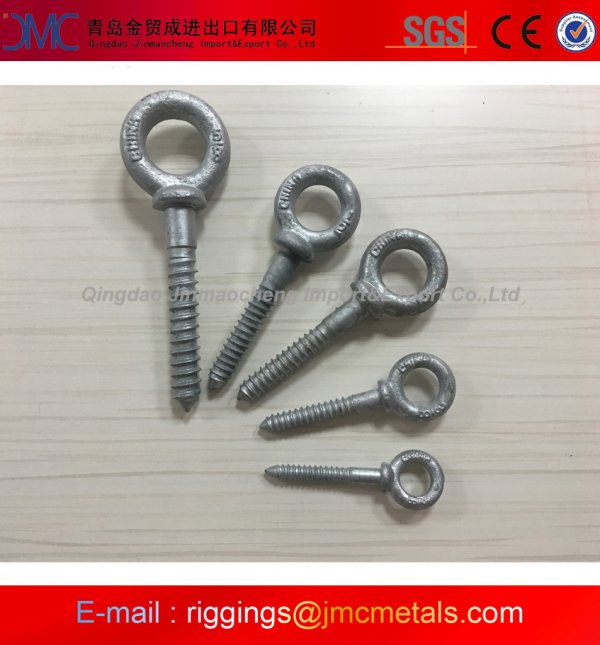

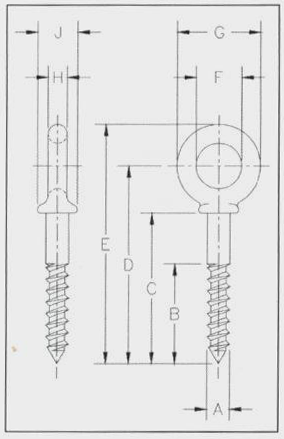

| Screw Eye Bolts G-275 | ||||||||||
| SHANK DIA.&LENGTH | WEIGHT PER 100 | DIMENSIONS (IN.) | ||||||||
| (IN.) | (LBS.) | A | B | C | D | E | F | G | H | J |
| 1/4*2 | 4.30 | 0.25 | 1.50 | 2.00 | 2.50 | 2.94 | 0.50 | 0.88 | 0.19 | 0.47 |
| 5/16*2.1/4 | 9.90 | 0.31 | 1.69 | 2.25 | 2.94 | 3.50 | 0.63 | 1.13 | 0.25 | 0.56 |
| 3/8*2.1/2 | 18.88 | 0.38 | 1.88 | 2.50 | 3.28 | 3.97 | 0.75 | 1.38 | 0.31 | 0.66 |
| 1/2*3.1/4 | 37.50 | 0.50 | 2.44 | 3.25 | 4.25 | 5.12 | 1.00 | 1.75 | 0.38 | 0.91 |
| 5/8*4 | 85.50 | 0.63 | 3.00 | 4.00 | 5.31 | 6.44 | 1.25 | 2.25 | 0.50 | 1.12 |
