Brand Name: JMC
Model Number: DIN Standard
Material: Malleable Iron
Size: 3mm-40mm
Surface Treatment: E. Galv
Technology: Casting
Application: Wire Rope Fittings
Packing: In carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

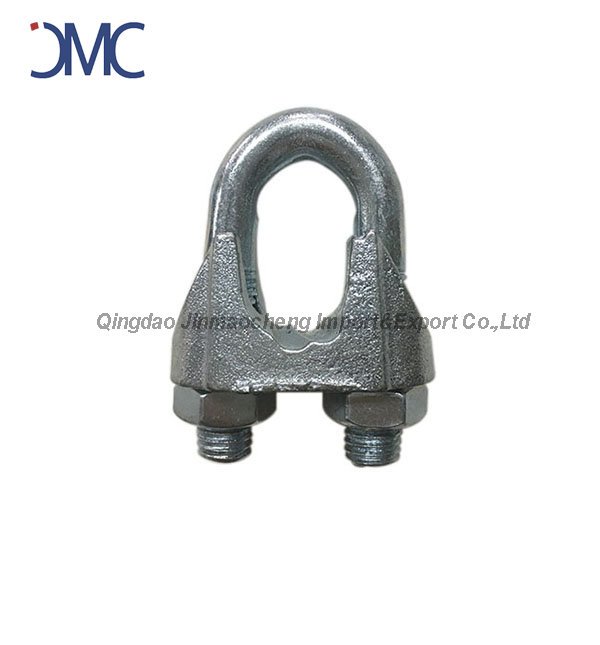

| DIN741 Malleable Wire Rope Clip | |||||||

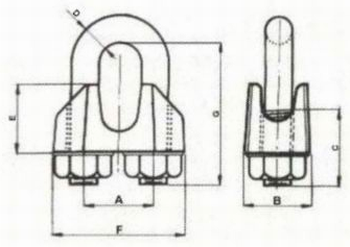

| SIZE | DIMENSIONS (MM) | ||||||
| (MM) | A | B | C | D | E | F | G |
| 3 | 9 | 10 | 12 | 4 | 10 | 21 | 16 |
| 5 | 11 | 11 | 13 | 5 | 10 | 23 | 19 |
| 6.5 | 13 | 12 | 15 | 5 | 11 | 26 | 23 |
| 8 | 16 | 14 | 19 | 6 | 15 | 30 | 28 |
| 10 | 19 | 18 | 22 | 8 | 17 | 34 | 34 |
| 11 | 20 | 19 | 22 | 8 | 18 | 36 | 36 |
| 13 | 24 | 23 | 30 | 10 | 21 | 42 | 45 |
| 14 | 25 | 23 | 30 | 10 | 22 | 44 | 47 |
| 16 | 29 | 26 | 33 | 12 | 26 | 50 | 51 |
| 19 | 32 | 29 | 38 | 12 | 30 | 54 | 63 |
| 22 | 37 | 33 | 44 | 14 | 34 | 61 | 71 |
| 26 | 41 | 35 | 45 | 14 | 37 | 65 | 81 |
| 30 | 48 | 37 | 50 | 16 | 43 | 74 | 94 |
| 34 | 52 | 42 | 55 | 16 | 50 | 80 | 104 |
| 40 | 58 | 45 | 60 | 16 | 55 | 88 | 124 |
